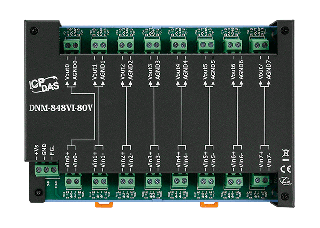

DNM-848VI-Serie - 8-channel DC Voltage Attenuator with channel to channel isolation
Levertijd:
2~7 dagen
SKU
DNM-848VI-Serie
DNM-848VI-Serie

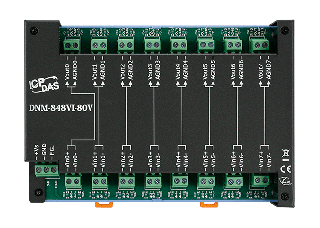

DNM-848VI-10V - 8-channel 10 VDC Voltage Attenuator with channel to channel isolation
DNM-848VI-80V - 8-channel 80 VDC Voltage Attenuator with channel to channel isolation
DNM-848VI-150V - 8-channel 150 VDC Voltage Attenuator with channel to channel isolation
● With Metal cover
● AC/DC Source Input
● High Voltage Input Measurement
● Linear Attenuation Ratio
● High Input Impedance
● Easily wire connection
Introduction
The DNM-843VI series and DNM-848VI series are voltage input attenuator.

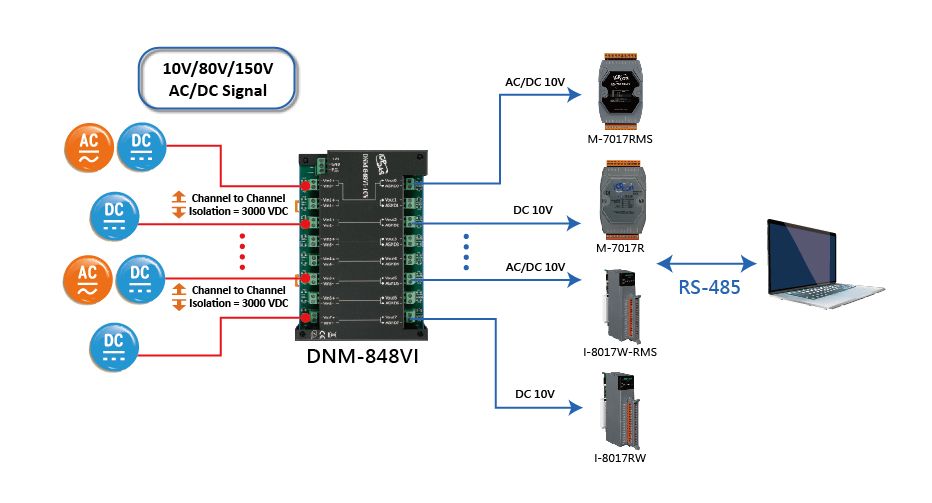

The maximum input range is from ±80 to ±800 V can be attenuated to ±10 V. provide 3000 VDC intra-modules isolation and 3000 VDC channel to channel isolation to avoid the noise interference from inputs to outputs or channel to channel. It can be used with the analog input modules such as I-7017, I-87017, M-7017RMS and I-87017W-RMS etc. to measure the high voltage.
Applications
Meer informatie
Art.nr.
DNM-848VI-Serie
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Documenten
