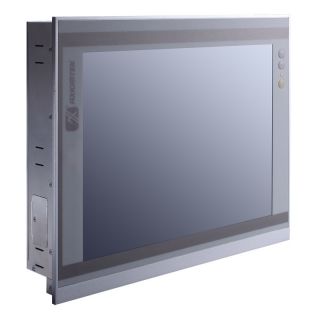

Axiomtek Panel PC GOT3126T-834
Levertijd:
3~4 weken
SKU
GOT3126T-834
12.1" XGA TFT Extended Temperature Fanless Touch Panel Computer with Intel® Atom™ Processor E3827 (-20°C +55°C)
● 12.1" XGA (1024 x 768) color TFT LCD display
● Fanless cooling system with Intel® Atom™ E3827 1.75GHz
● Supports wide temperature range of -20°C ~ +55°C
● Supports 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 3 COM ports
● Supports WLAN/3G module and antenna (optional)
● 9~36VDC wide voltage and over current protection
● Easy for expansion: Mini Card
● Supports 2.5” SATA HDD & CFast™ or mSATA
● Supports panel mount and optional VESA arm, desktop stand, wall mount
● Adjust RS-232/422/485 setting via BIOS
GOT3126T-834 is the 12.1" fanless touch panel computer. By supporting a wide temperature range from -20°C to +55°C, is especially designed for harsh environments.
The GOT3126T-834 adopts a modern, super sleek fanless design, is equipped with a 12.1" TFT LCD, and low power consumption Intel® Atom™ (Bay Trail) processor. In response to customer's requests for wireless applications, the GOT3126T-834 has dual Mini Card slot and optional fixed rotational WLAN antenna for wireless network connection. By just plugging in the Mini Card WLAN card, customers have instant access wireless LAN.
The GOT3126T-834 is suitable for many applications including transportation, train, control platforms on ships, oil pipe monitoring systems, and environmental monitoring of
steelworks.
Wide-temperature (-20°C~ +55°C) supported
The industrial touch panel PC adopts unique extended temperature technology, with a temperature range from -20°C to +55°C, with a fanless cooling system and compact
design for harsh environments.
WLAN/3G module & antenna supported (optional)
The GOT3126T-834 provides dual Mini card slots and WLAN/3G antenna for wireless network connections. By simply plugging in the WLAN/3G module, customers can use the unit in a wireless environment.
Anti-vibration up to 1.3G
With a unique anti-vibration design patent, the rugged human machine interface can work well under 1.3G (10~500Hz) in operation mode and equipped with a 2.5” HDD.
Meer informatie
Art.nr.
GOT3126T-834
Fabrikant
Axiomtek
Land van herkomst
Taiwan
Front Bezel
IP65, NEMA 4 rugged protection, aluminum front bezel
LCD Panel
| Display Type | 12.1" XGA TFT LCD |
| Brightness (cd/m2 ) | 500 nits |
| Resolution | 1024 x 768 |
Main System
| CPU | Intel® Atom™ processor E3827 1.75GHz (Bay Trail) |
| Chipset | Onboard |
| System Memory | 1 x 204-pin DDR3L 1333/1600 MHz SO-DIMM up to 8 GB |
BIOS
AMI UEFI BIOS
Storage
1 x 2.5" SATA /SSDHDD
1 x CompactFlash™ 1 x mSATA
1 x CompactFlash™ 1 x mSATA
Watchdog Timer
255 levels, 0~255 sec.
Onboard Graphics
Integrated in Intel® GFX
I/O Connector
3 x RS-232/422/485 (COM 1/2/3)
1 x VGA
1 x Audio (Line-out)
2 x USB3.0 2 x USB2.0
2 x 10/100/1000Mbps Ethernet
1 x VGA
1 x Audio (Line-out)
2 x USB3.0 2 x USB2.0
2 x 10/100/1000Mbps Ethernet
Expansion Interface
2 x PCIe Mini Card
Touchscreen
Resistive type
Power Supply
9~36V DC with power protection
Grootte
311.5 mm (W) x 56.9 mm (D) x 250 mm (H)
Weight (net/gross)
2.8 kg / 5kg
Environmental
Operating temperature:
-20°C ~ +55°C
(with W.T. DRAM/HDD/CF)
Storage Temperature:
-30°C ~ +80°C
Relative humidity:
20% ~ 90% @ 40°C non-condensing
Operation vibration:
1.3G, 10 ~ 500Hz, random for 2.5" HDD
2G , 10 ~ 500Hz, random for CompactFlash™
-20°C ~ +55°C
(with W.T. DRAM/HDD/CF)
Storage Temperature:
-30°C ~ +80°C
Relative humidity:
20% ~ 90% @ 40°C non-condensing
Operation vibration:
1.3G, 10 ~ 500Hz, random for 2.5" HDD
2G , 10 ~ 500Hz, random for CompactFlash™
Certification
CE
Operating System
Windows® 7
Windows 7 Embedded
Windows® 8
Windows 8 Embedded
Windows 7 Embedded
Windows® 8
Windows 8 Embedded
