DURABOOK R8 ATEX Certified Tablet, Extreme Power, Ultra Compact.

Levertijd:
7~8 weken
SKU
R8-ATEX

● 12th Gen. Intel® Core™ i5 / i7 vPro Processor
● up to 16GB (LPDDR4x) memory
● Intel® Iris® Xe Graphics
● 8.1" Wide View (1280x800) Display
● 800 nits DynaVue® Sunlight Readable Bonded Display
● Capacitive Multi Touch
● User selectable touch mode for Finger/Water, Glove, or Stylus
● Dual Mode (digitizer) optional
● Available with integrated 4G/LTE + GPS
● 1D/2D Barcode Scanner (Optional)
● Smart Card Reader (Optional)
● Windows 10 / 11 Professional
● Ultra Light 0.86 kg
● IP66 Dust and Water Protection
● Mil-STD810H Shock, Drop and Vibration
● ATEX Zone 2/22 certified
● Ex II 3G Ex ic IIC T4 Gc
● Ex II 3D Ex ic IIIB T135°C Dc

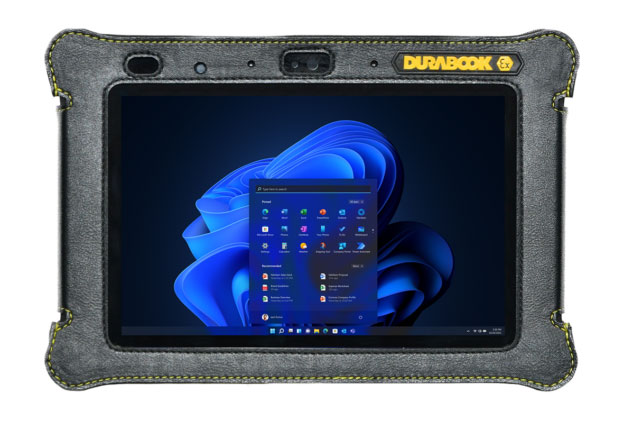

DURABOOK R8 ATEX Zone 2/22 Certified Tablet - 8 inch fully rugged tablet

Extreme Power, Ultra Compact.



Combining the mobility and flexibility of its pocket-sized form with a business-focused design, the R8-EX fully rugged tablet offers a unique combination of revolutionary computing power, rugged features and high portability to withstand the most challenging environments. Powered by Intel® 12th Generation processors, it is designed for professional operations close to the edge, where it is needed most. R8-EX features an 8” LCD display with Durabook’s proprietary DynaVue® technology for an exceptional viewing experience even in direct sunlight.

Weighing in at just 0.88kg, the Durabook R8-EX sports a Coolfinity™ fanless design. Its IP66 rating, six-feet drop resistance, MIL-STD 810H and ATEX Zone 2/22 certifications make the R8-EX more rugged than other comparable devices on the market and the most reliable mobile device to support digital and remote operations in hazardous areas.

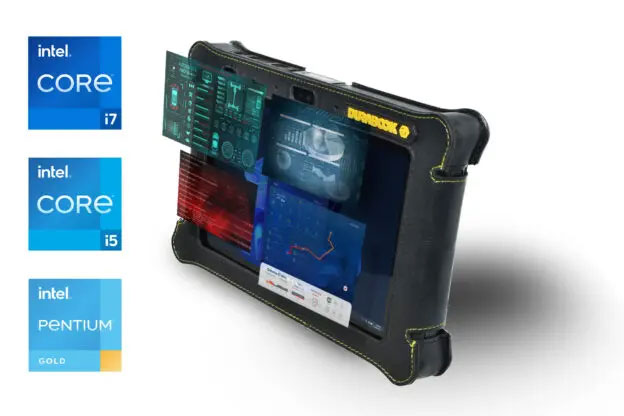

REVOLUTIONARY COMPUTING PERFORMANCE


Equipped with the latest Intel® 12th Generation processors with Intel® Iris® Xe graphics, the R8 rugged tablet targets mobile workers of all kinds seeking superior performance in a compact, lightweight form. With unprecedented new computing power of Intel® Core™ and Pentium® Gold CPUs, the R8 is enhanced to cater for congested data processing and offers multi-tasking without compromise.
Plus, the high-speed data transmission capability of Thunderbolt™ 4, Intel® Wi-Fi 6E and Bluetooth® V5.2 elevate exceptional connectivity even further to support ease of use.

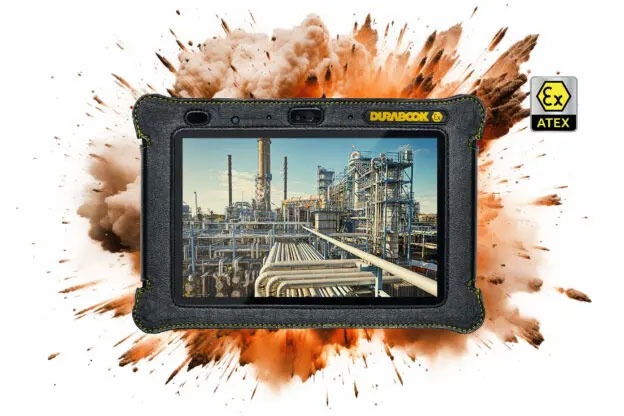

ATEX CERTIFIED

Certified for use in hazardous environments, the R8-EX fully rugged tablet provides ATEX Zone 2/22 certification for use in potentially explosive atmospheres. This certification offers modern frontline professionals assurance they can use the device to provide remote support, capture and access critical information in the field and run diagnostics with the highest accuracy in hazardous locations.

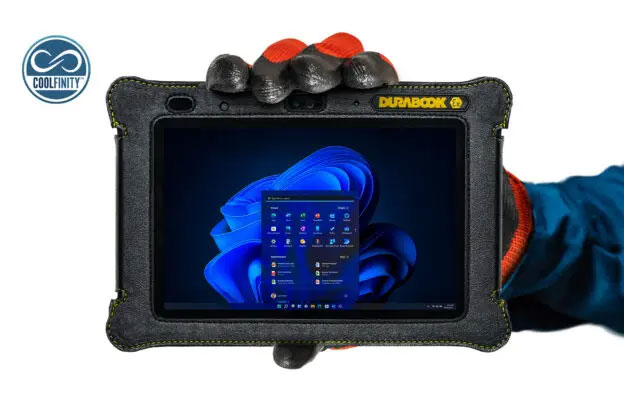

COMPACT-SIZED YET FANLESS

Small enough to fit in the palm of your hand, the R8-EX is easy to carry and easy to wear. Featuring the Coolfinity™ fanless design, the R8-EX weighs just 0.88kg making it the most compact, comprehensive 8″ tablet on the market. Its fanless thermal solution lets the R8-EX fully rugged tablet operate quietly, while offering greater reliability and decreased downtime and repairs that negatively impact productivity, while providing an extra level of security for today’s mobile workforce.

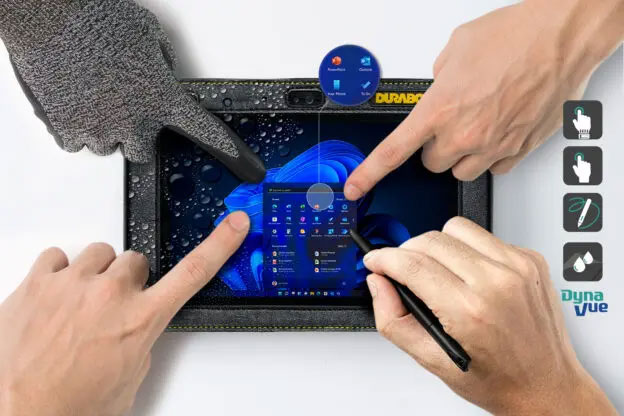

UNRIVALED VIEWING QUALITY

The R8-EX features an 8” LCD (1280 x 800) display with Durabook’s proprietary DynaVue® technology up to 800 nits for exceptional viewing even in direct sunlight. It can be used in landscape and portrait modes so users can view applications in an orientation that best suits their needs. The R8-EX boasts four advanced touch modes; Glove, Stylus, Water, Finger, with optional digitizer, optimizing use for both indoor and outdoor applications.

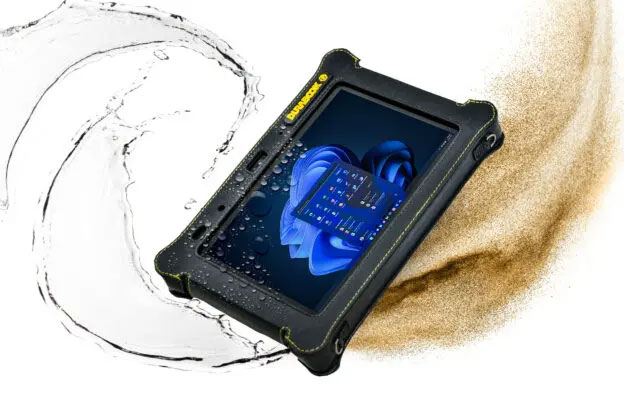

ROCK-SOLID DESIGN

The robust design of the R8-EX tablet equips field operatives with the confidence to do their jobs in even the harshest environments and successfully undertake outdoor tasks with a heavy workload.
MIL-STD-810H certified and drop-tested from 6 feet, and with an IP66 rating for maximum protection against dust, dirt, and water ingress, the R8-EX is the most reliable 8” mobile device to support modern professionals’ digital and remote operations.

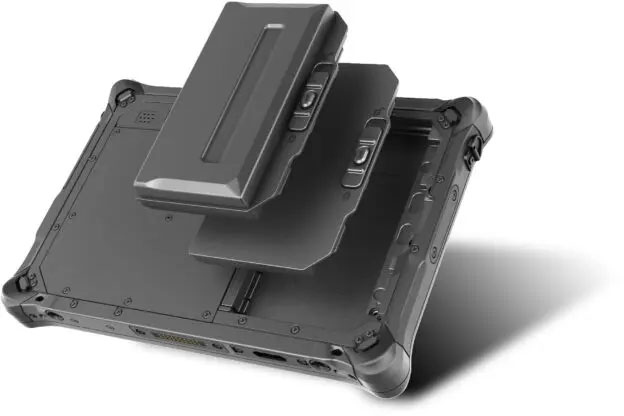

LONG-LASTING POWER


With sustained battery power in mind, the R8-EX can operate for 8.5 hours on its replaceable main battery, ensuring professional operatives remain productive in the field. For those who need to work longer, a high-capacity battery with up to 17-hours battery life is optional, enabling professional workers in hazardous environments to use the tablet across several shifts without having to stop and charge.

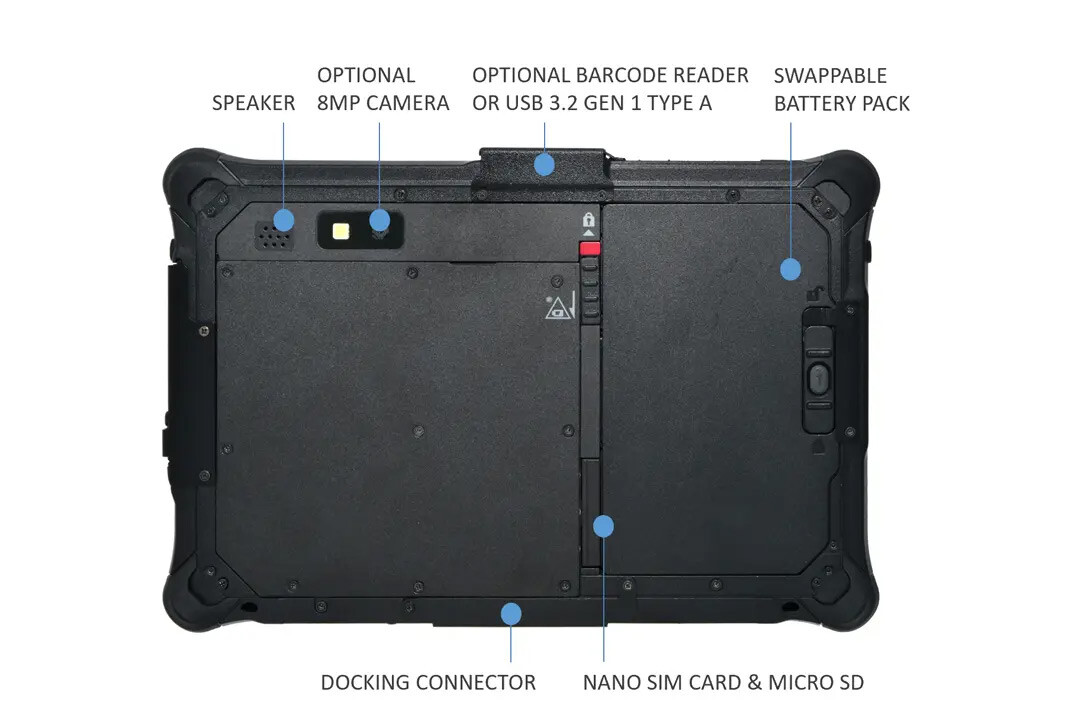

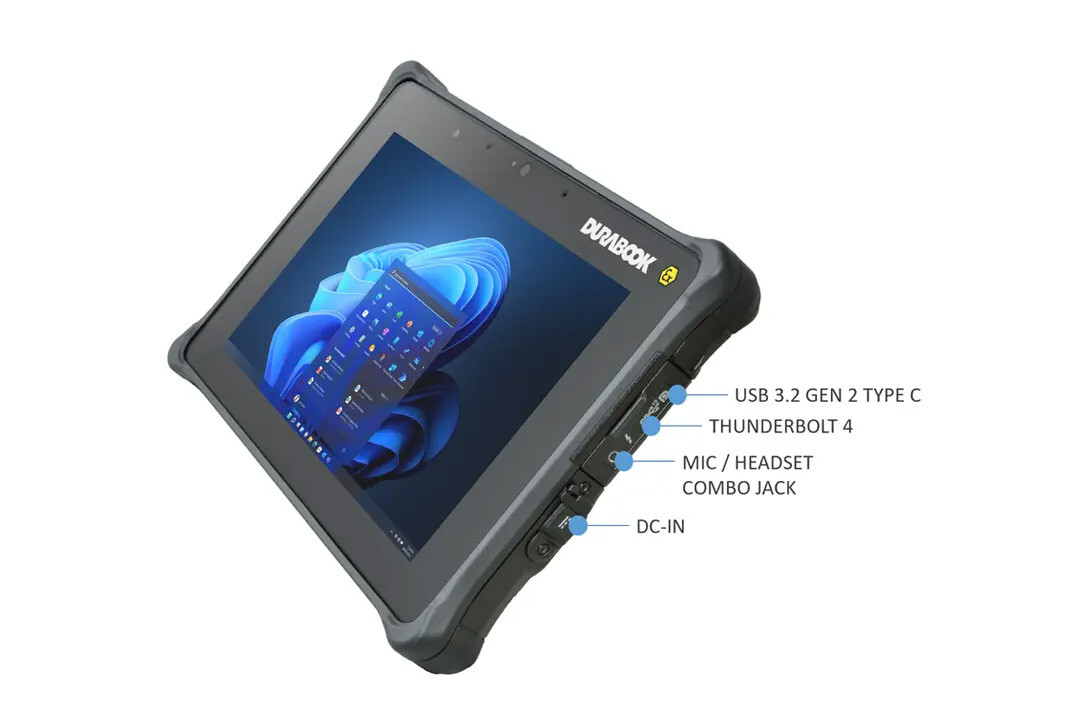

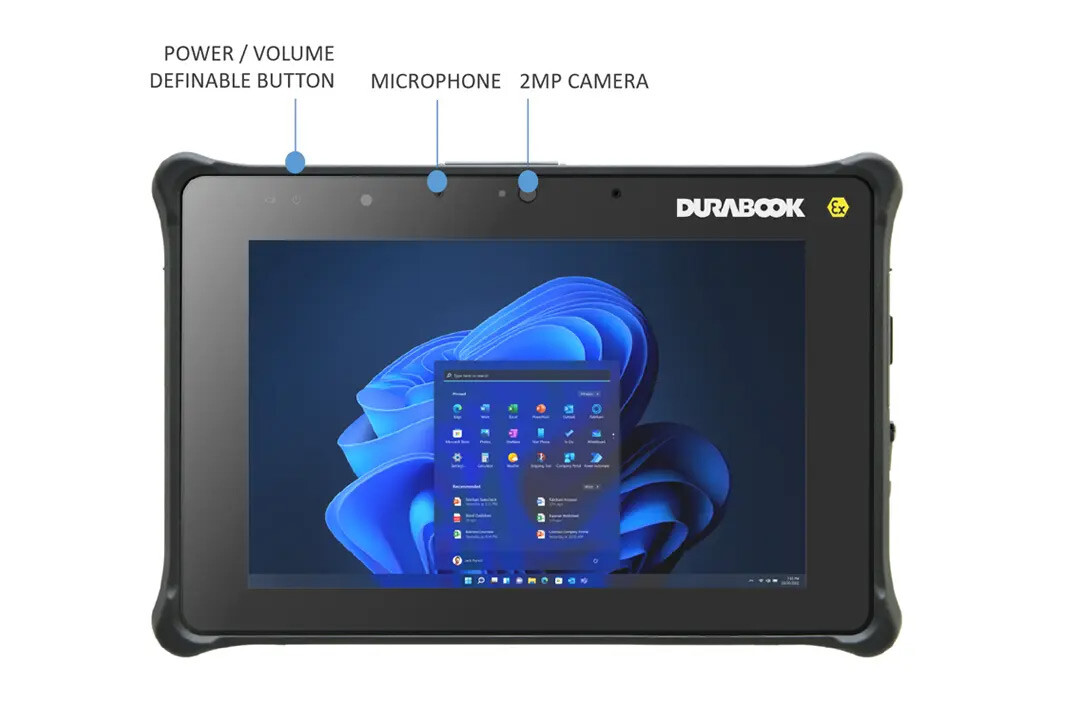

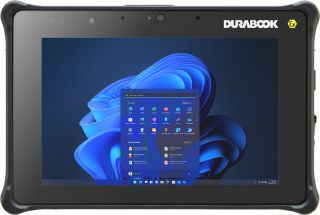

R8-EX TABLET ANATOMY

Meer informatie
Art.nr.
R8-ATEX
Fabrikant
Durabook
Land van herkomst
Taiwan
Operating System

Windows 10 Professional

Windows 11 Professional

Rugged Features

MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)
MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
ANSI/ISA 12.12.01-2000, Class I, Division 2
6′ drop 26 faces
IP 66 certified

ATEX Zone 2/22 certified
Ex II 3G Ex ic IIC T4 Gc
Ex II 3D Ex ic IIIB T135°C Dc

CPU

Intel® Core™ i7-1250U (12th Gen) Processor with vPro™
(12M Cache, up to 4.7 GHz, 2P+8E cores)

Intel® Core™ i5-1230U (12th Gen) Processor with vPro™
(12M Cache, up to 4.4 GHz, 2P+8E cores)

Intel® Pentium® Gold Processor 8500 (8M Cache, up to 4.4 GHz, 1P+4E cores)

Memory

8GB up to 16GB (LPDDR4)

Storage

128GB NVMe PCIe SSD
Optional 512GB/1TB PCIe SSD

VGA Controller

 Intel® Iris® Xe Graphics

Scherm

8.0” LCD (1280 x 800)
800 nits DynaVue® sunlight readable display with capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
optional with digitizer

X Bay



Pointing Device

capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
optional with digitizer

Expansion Slots

microSD card (microSDXC) x 1

Memory Card Reader

microSD card (microSDXC) x 1
nano SIM card slot

I/O Ports

Thunderbolt 4 x 1
USB 3.2 Gen2 (type C) x 1 (support DP)
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
Docking connector (20-pin Pogo) x 1
Nano SIM card x 1
DC-In jack x 1

Option port:
Optional USB 3.2 Gen1 (type A) x 1
or
Optional 1D/2D barcode reader x 1



Communication Interface
Intel® Wi-Fi 6E AX211 (802.11 ax)
Bluetooth® V5.3
Optional GPS and 4G LTE multi-carrier mobile broadband
Beveiliging

Intel® vPro™ Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Stealth mode
Night vision mode

Power

AC adapter : 100-240V, 50Hz-60Hz, 65W
Main battery Li-Ion, 3.8V, 3600mAh, up to 8 hours
Optional long life battery Li-Ion 3.8V, 7200mAh, up to 16 hours
Optional swappable battery: 5 minutes swap time

Dimensions & Weight
227 mm (L) x 150 mm (W) x 20,5 mm (H) 0.86 kg
Environmental Spec

MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)
MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
ANSI/UL 121201, Class I, Division 2
6′ drop 26 faces
IP 66 certified

ATEX Zone 2/22 certified
Ex II 3G Ex ic IIC T4 Gc
Ex II 3D Ex ic IIIB T135°C Dc

Aluminum-magnesium alloy chassis
Port covers
Sunlight readable display
Optional swappable battery technology
