Graphtec
Fieldworks Direct B.V.: De Partner voor Graphtec Datalogging Oplossingen
Al ruim 75 jaar is de instrumentatiedivisie van Graphtec een pionier in de dataregistratie- en dataloggingindustrie, opgericht in 1949 als Watanabe Instruments. Graphtec Corporation staat bekend om het produceren van geavanceerde datarecorders en dataloggers voor een breed scala aan toepassingen, waaronder industriële, agrarische, medische, machinebouw, R&D-laboratoria en milieutoepassingen.
Of het nu gaat om voertuigmetingen of temperatuurinspecties in klimaatkamers, Graphtec ontwikkelt en produceert dataloggers met uitgebreide opslagmogelijkheden die voldoen aan de steeds hogere eisen voor kwaliteitsmetingen. Kortom, Graphtec levert intuïtieve en intelligente dataloggingoplossingen die zorgen voor betrouwbare en nauwkeurige dataverzameling.
Vraag Meer Informatie of Persoonlijk Advies aan
Voor meer informatie of een persoonlijk advies over de datalogging systemen van Graphtec, kunt u vrijblijvend contact opnemen met ons deskundige team. Bel ons op +31 (0) 73 624 1111 voor een vrijblijvende consultatie.

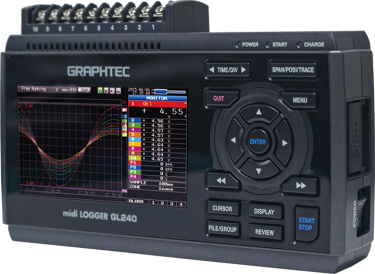

Graphtec GL240 - DataloggerGraphtec GL240 Datalogger
● 10 geïsoleerde multifunctionele ingangen (voltage, temperatuur of luchtvochtigheid)
● ±20 mV tot ±100 V input over 12 bereiken
● Hoge resolutie 4.3" WQVGA Color TFT scherm
● Eenvoudig keypad systeem
● Speciale bundel uitvoeringen leverbaar
● Verbindt de GL240 met een pc om data uit te lezen of data live te monitoren
● Gratis software om data te bekijken/analyseren

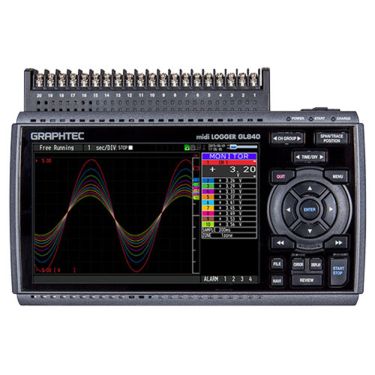

Graphtec GL840 - Standalone Multi-Channel DataloggerIsolated/Universal input, Standalone Multi-Channel Datalogger
● 20 analog input channels, expandable to 200
● Programmable per channel
● ±20 mV to ±100 V over 12 ranges
● Supports direct-connected thermocouples of any type
● Supports direct-connected PT100/PT1000 RTDs
● Full isolation per channel (60V; see 300V version)
● 4 discrete input channels
● Programmable as a group as logic or pulse inputs
● Pulse inputs support counter or frequency inputs
● 4 discrete alarm outputs
● Optional WiFi wireless operation
● Flexible triggering
● Built-in, 7-inch display
● Built-in Web server operation for remote operations
● Removable SD memory support up to 32 GB capacity - one (1) 4GB memory card included
● Operates either stand-alone or PC-connected
● PC-side software included

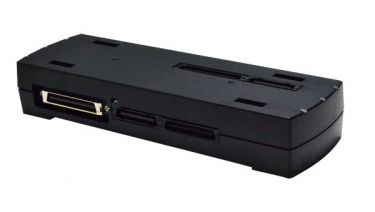

B-566 Extension terminal base unit for the GL840Extension terminal base unit for the GL840

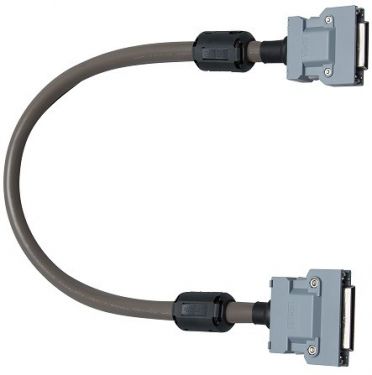

B-567 Extension Terminal Connection Cable for the GL840Extension terminal Connection cable for the GL840

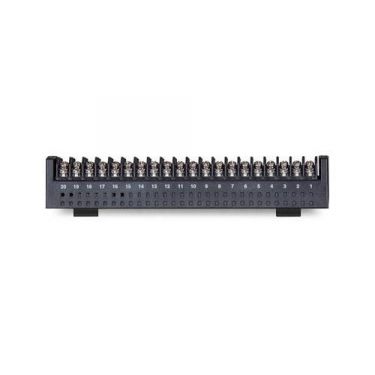

B-564 / B-565 20-Channel input terminal for the GL84020-Channel input terminal for the GL840

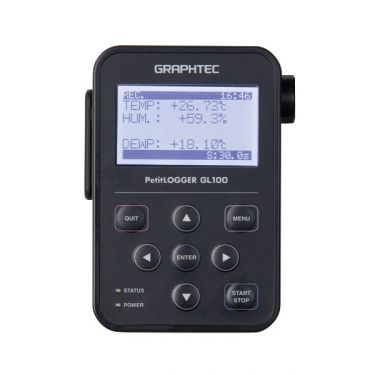

Graphtec GL100 Compact Modular Mini Data LoggerGL-100 Compact Data Logger
Temperature, Humidity, Acceleration, Carbon Dioxide, Illuminance, UV, Voltage, Current, Logic and Pulse Measurement Capabilities
● Parameters: voltage, temperature, humidity, acceleration, illuminance, UV intensity, AC current
● Measuring channels: up to 4
● Sampling rate: 0.5 s to 60 min (dep. on sensor/module)
● Interface: USB, Wi-Fi
● Operation: stand-alone, PC-based, Smartphone
● Stores Recorded Readings onto Internal Memory or MicroSD Card
● Email Notifications for Alarm Alerts, Low Battery Warnings & Confirm Setting Changes (Wi-Fi version Only)
Graphtec GL980 High Speed 1 MS/s DataloggerHighspeed 8-channel Data Logger
● 8 Channel 1Ms/s
● High Resolution with 5.7" Display
● Accepts voltages and thermocouples
● 4MS memory / Channel
● Ethernet 100Tx,USB 2.0 interfaces
● Data can be captured directly to an external USB memory stick
● Continuous battery charge during operation
● Ultra small A5 size (232mm x 150mm x 80mm)

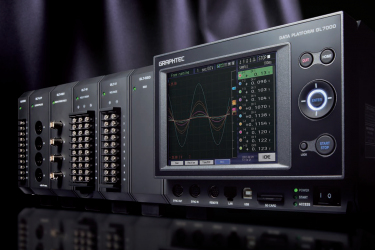

Graphtec GL7000 Data LoggerGraphtec GL7000 Multi-function Modular Data Logger
● Modular construction
● A wide range of isolated analog amplifiers
● Sample Rates up to 1 Ms/s simultaneous
● supports mV to 100's of Volts, TC's and RTD's
● Input Module with 1000V input Range
● A logic and pulse input amplifier module
● Stand-alone or PC-connected operation

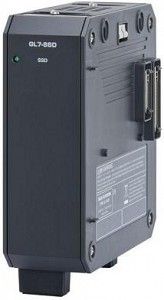

● Available with128GB SSD storage
● Built-in USB and Ethernet interfaces
● WEB server, FTP server function
● Optional, detachable Touch Display
● Flexible pre- and post-triggering options
● Multiple GL7000 instruments may be daisy-chained to provide expanded and synchronous operation.

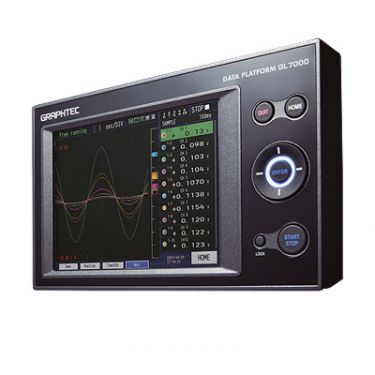

GL7-Disp - Detachable Touch Monitor for Graphtec GL7000Detachable 5.7" Monitor for Graphtec GL7000 Datalogger

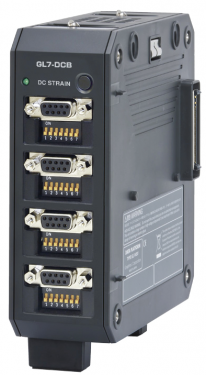

GL7-DCB - 4-channel, 100 kS/s, Strain Gauge module for GL70004-channel Strain Gauge input module for GL7000

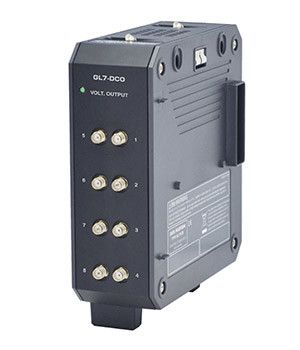

GL7-DCO - 8-channel, 100 kS/s, Voltage output module for GL70008-channel Analog Voltage Output module for GL7000

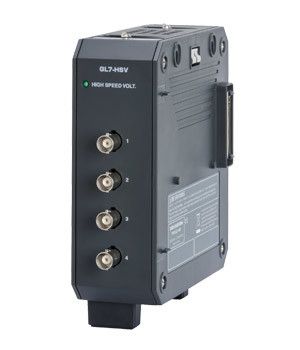

GL7-HSV - 4-channel High Speed, 1Ms/s, Isolated, Voltage input module for GL70004-channel High Speed Voltage input module for GL7000

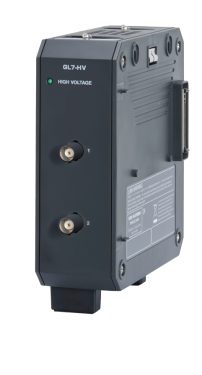

GL7-HV - 2-channel, 1Ms/s, Isolated, High Voltage (1kV), input module for GL70004-channel High Speed Voltage input module for GL7000

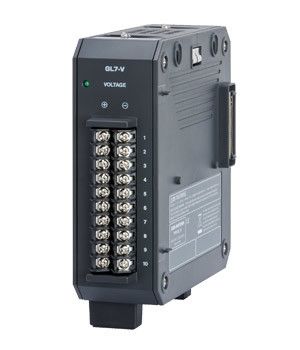

GL7-V - 10-channel, Isolated, 1kS/s, Voltage input module for GL700010-channel, 1 kHz max., Voltage input module for GL7000
GL7-L/P - 16-channel Logic / Pulse Module for GL700016-channel Logic / Pulse Module for GL7000

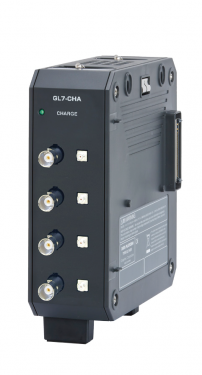

GL7-CHA - 4-channel, 100kS/s, Acceleration/Pressure/Force input module for GL70004-channel Acceleration/Pressure/Force input module for GL7000

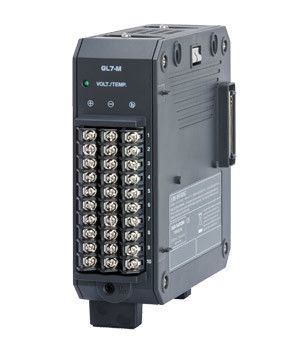

GL7-M - 10-channel Voltage and Temperature (TC & RTD), isolated, input module for GL700010-channel Voltage and Temperature (Thermocouple & RTD), isolated input module for GL7000

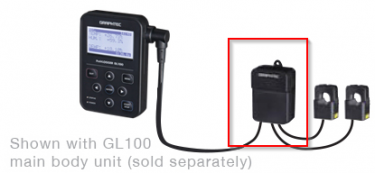

GS-DPA-AC - AC Current Sensor Adapter for GL100● AC Current Sensor Adapter module
● use one or two AC Current Sensors
GS-AC50A / GS-AC100A / GS-AC200A
● For GL-100 Data Logger
GS-AC50A - AC current sensor for GS-DPA-AC● AC current sensor
● Measurement range current: 50 A AC; cable length 200 mm
● for connection with GS-DPA-AC
● GL100 Data Logger accessory
