ICS Ethernet Relay Interface 8064
Levertijd:
3~4 weken
SKU
8064
Ethernet to Relay Interface
● VXI-11.3 Compatible. Works with virtually any computer or test language.
● Multiple configurations: 16 low-level SPST relays, 16 hi-power SPST relays, 16 relay drivers. Choose the correct contact or driver for your application.
● Multiple relay programming modes: individual relays or single or multi-pole scanning. Flexible relay programming.
● Isolated digital inputs accept contact closures, CMOS/TTL, and up to 32 V inputs. Eliminates ground loops.
● IEEE-488.2 compatible unit uses SCPI commands. Meets the latest test system specifications.
● Configurable with a web browser, with a windows configuration program or RPC. Easy network configuration from any computer.
● Includes ICS's VXI-11 keyboard program. The easy way to test relay connections before writing a test program.

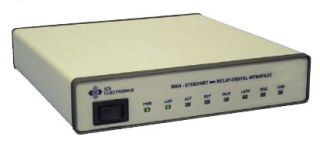

The ICS Ethernet Relay Interface 8064 is an Ethernet to Relay Interface that provides 16 form ‘A’ contacts or 16 relay drivers for switching signals or for driving external relays. The ICS Ethernet Relay Interface 8064’s versatile commands let the user control the relays individually, step them as a single or multi-pole scanner, or step in any programmed sequence. The ICS Ethernet Relay Interface 8064 also includes eight isolated digital inputs that can be used to read external signals or contact closures. In control applications, these signals can be used to verify the response of the external system to the control outputs. The ICS Ethernet Relay Interface 8064 can also monitor the digital inputs and generate a Service Request when the signals change state.
Meer informatie
Art.nr.
8064
Fabrikant
ICS Electronics
VXI-11 Capabilities
| Fully VXI-11.3 compliant | |||
| VXI-11.3 | Device Interface | ||
| Sockets | 15 + 1 for UDP | ||
| Channel types | Data, Abort and Interrupt | ||
| Links | 64 | ||
| Interface Names |
|
||
VXI-11.3 Functions
All VXI-11.3 functions including device read, write, local, remote, clear, trigger, readstb, lock and unlock.
RPC Protocol
Conforms to ONC RPC v2, VXI-11
Ethernet Interface
| Type | IEEE 802.3 compliant | ||
| Speeds |
|
||
| IP Address | Static or DHCP | ||
| Factory setting | 192.168.0.254 static | ||
| Interface name | any [inst0] |
Internal Webserver
| Capabilities |
|
SCPI Capabilities
Incorporates the SCPI Command Tree. Complies with SCPI v1994.0
LXI Compatability
The 8064 generally conforms to the LXI 1.1 Specification for Class C instruments except the 8064 does not self generate IP addressees. The 8064's VXI-11.3 and IEEE-488.2 conformance exceeds LXI requirements.
Controls and Indicators
| Controls | |
| Power | Front panel switch |
| LAN Rst | Rear panel push-button that resets the network settings |
| Indicators | |
| PWR | Indicated pwer on |
| LAN | Unit connected to active LAN. Blinks to identify the unit |
| ACT | Transferring messages to/from the network |
| RDY | Unit has passed self test |
| TALK | Unit asked to send data |
| LSTN | Unit sent a command or data |
| SRQ | Device Service Request asserted |
| ERR | Blinks for a soft VXI-11 error and On for solid command errors. |
Relay Contacts
| All relay contacts are brought out to individual pins on the relay connector. Guard lines are provided on the PC board between adjacent relay contacts to minimize crosstalk. | ||
| Model No. | 8064-11 | 8064-12 |
| Usage | Lo Level | Hi Power |
| Number of Relays | 16 | 16 |
| Contact Form | Form A (SPST) | Form A (SPST) |
| Contact Material | Ruthenium | - |
| Contact Ratings | ||
| Restive Load | 0.5 A | 1.0 A |
| Switching V | 200 VDC | 200 VDC |
| Power | 10 W | 50 W |
| Breakdown V | 300 VAC | 300 VAC |
| Resistance | 0.15 Ω | 0.2 Ω |
Relay/Solenoid Driver Outputs
| The -14 version has the relay driver outputs. Relay drivers are open collector type with an internal snubber diode. User supplies the positive relay power for the diodes. | |
| Model No. | 8064-14 |
| Usage | External Rays |
| Number of Drivers | 16 |
| Sink Current | 300 mA max. |
| Switching V | 48 VDC max. |
Scanner-sequence Memory
16 relays x 32 steps
Digital Lines
| Eight isolated inputs that can be queried and/or monitored for selected bit changes. Detected changes are saved and can be used to generate a Service Request (SRQ). | |||
| Data Lines | 8 | ||
| Input Signals | TTL/CMOS or contact closure to ground | ||
| Input Levels |
|
||
| Pullups | 1.5 KΩ to +5 Vdc or to user furnished external voltage | ||
| External Voltage | 5 to 32 VDC | ||
| Isolation | 500 VDC to internal logic with external pullup voltage. | ||
| Monitoring | > 1k samples/sec. | ||
Grootte
1185.2 x 38.6 x 189.2mm
Mechanical
| Construction | RoHS compliant, lead free |
Connectors and Headers
| Digital I/O | 50-pin female, metal DC shell blue-ribbon connector with locking springs |
| LEDs | 8-pin male header |
| Ethernet | RJ-45 |
Omgeving
| Operation Temperature | -10 °C to +70 °C |
| Storage Temperature | -20 °C to +85 °C |
| Humidity | 0-90% RH without condensation |
Power
12 to 24 VDC @ 7 VA + 50 mA/closed relay
Approvals
EEC Standards EN 61000-6-4:2001,
EN 61000-6-2:2001, EN 55024:2003,
and EN 55022:2003.
Included Accessories
Instruction Manual
Mating Connector
LAN Crossover Cable
CD-ROM with VXI-11 Keyboard Controller program and Configuration Utility
UL/CSA/VDE approved AC power Adapters
Mating Connector
LAN Crossover Cable
CD-ROM with VXI-11 Keyboard Controller program and Configuration Utility
UL/CSA/VDE approved AC power Adapters
