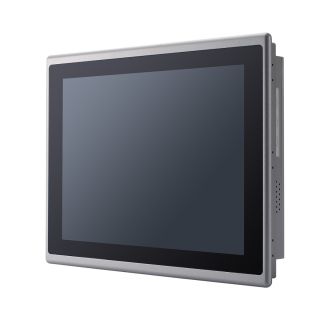

Axiomtek Panel PC GOT312A-ELK-WCD

The 12.1-inch GOT312A-ELK-WCD this IP65-rated fanless panel PC is powered by the low-power Intel® Celeron® processor J6412 (codename: Elkhart Lake) and come with multiple I/O combinations and a flexible I/O module slot to enable them in providing complete solutions for a wide array of applications in various industries. By supporting the 2.5GbE TSN Ethernet port, the panel computer enable the transmission of time-critical data, such as audio, video, and control signals, with low latency and high reliability. This touch panel PC aim for boosting greater productivity and efficient data visualization across businesses from industrial automation, the public sector, to the retail industry.

The GOT312A-ELK-WCD is a multi-touch fanless type panel PC with 15.6-inch WXGA LCD and supports Intel® Celeron® processor J6412. It also provides M.2 Key E and PCI Express Mini Card slots for add-on devices such like Wi-Fi module for factory automation, and oil pipe monitoring system. 15.6-inch WXGA LCD with Projected Capacitive Multi-touch The 15.6" WXGA touch panel PC supports 400 nits brightness, able to display contents in WXGA resolution. With projected capacitive multi-touch screen, users can operate the device more directly and friendly. The touch glass surface is up to 7H for anti-scratch purpose.

Axiomtek’s GOT312A-ELK-WCD support one 260-pin DDR4-2133/2400/2666/3200 SO-DIMM slot with up to 32 GB system memory and offer one 2.5" SATA SSD and one mSATA. Ready for more expansion possibilities, the panel PCs come with one full-size PCI Express Mini Card slot (PCIe + SATA + USB) and one M.2 Key E 2230 slot for wireless connectivity. Its rich I/O interfaces include one COM for RS-232/422/485, one RJ-45 2.5Gb Base-T Ethernet, one RJ-45 1Gb Base-T Ethernet, four USB 3.2 Gen2 ports, one HDMI 1.4, and one VGA. They also support one Phoenix-type connector for DC power input, one ATX switch for power on/off, one Line-in/out, one remote power switch, one AT/ATX switch (for DC type only), and one grounding hole (for DC version). Furthermore, they support TPM 2.0 for a higher level of security capabilities. supporting various OS, including scalable Windows 10/11 and compact Android 10, and Linux, to facilitate the development of unique applications.
